The Dynatrol CL-10GP CIP Proportional Level Detector is designed to control liquid levels in food and beverage processing or anywhere it is necessary to obtain proportional level control over a precise range. The EC-103C(G) Control Unit is paired with the detector and can activate electro-pneumatic transducers, valve positioners, indicators, controllers or other DC current devices. The Detector and Control Unit accurately monitor and control an extremely precise liquid level range due to its high-resolution, proportional output signal. This control operates reliably under varying frequency power supplies, high temperatures or harsh process conditions. The Detector is mounted through a 3/4-inch half-coupling at the point of desired level detection.
radar level sensor
Endress+Hauser’s Micropilot FWR30 is a cloud-connected radar that provides full transparency in the storage and transport of liquids. The 80 GHz wireless IIoT sensor combines high-end technology and user-friendly digital services in one cost-effective device. The instrument’s continuously recorded measurement data can be accessed at any time, from anywhere due to the device's cloud connection, with communication made possible by an integrated SIM card. Installation is easy and can be done in less than three minutes. An integrated battery allows operation without an external power supply. This compact device is ideal for stackable tanks and enables a plug-and-play solution.

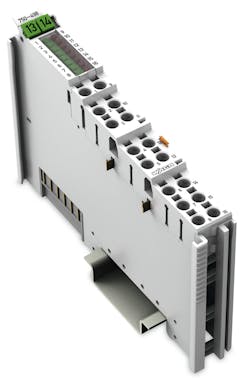

WAGO’s new 750 series (750-498) 8-channel thermocouple analog input module is a compact, easy-to-wire, configurable I/O module that is only 12 mm wide, saving space in the control cabinet and reducing installation and commissioning time. The 750-498 can be configured by channel for thermocouple types B, C, E, J, K, N, R, T, and S using WAGO-I/O-CHECK software or e!COCKPIT configuration tools. It can also be used to measure millivolt ranges -30 to +30, -60 to +60, -120 to +120, and -240 to +240. Users can select between internal and external cold junction temperature compensation. The 750-498 module has gained approvals from cULus for standard and hazardous locations plus marine DNV certification.
